1947-53 Chevrolet Truck AM/FM/Bluetooth Radio with Speakers

Description

Small size, big features! Our 1947-53 Chevrolet truck radio is designed to look, fit, and feel like the original. Behind the dash, the radio case is only 4” deep, allowing room for electric wipers and air conditioning. The AM scale on the dial glass is an exact copy of the original. Hidden in the background is a smaller FM dial scale. To switch between AM and FM, just quickly turn the radio off and back on again. This radio does not have a digital display.

When the radio is powered on, the dial pointer, knobs, and pushbuttons all move and work like the original. Every radio comes equipped with Bluetooth® for wireless audio streaming and hands-free phone control. Other features include a 3.5mm auxiliary port to plug in any compatible device, such as an MP3 player or a CD player, as well as another input jack specifically designed to work with our foot control switch. Each radio comes with a 12 ½” 12 wire harness with male and female connections for easy connection/disconnection. This harness includes power, ground, a 12-volt output wire (for options like a power antenna or amplifier remote connection), 4 speaker connections (unless speakers are already built onto the radio), and dial lights. The radio also has 4 channel RCA outputs for an external amplifier and a subwoofer RCA output. Please see the links below for more information.

Specifications:

• Fits all original 1947-53 Chevrolet truck dashes. No modifications are necessary!
• Radio case dimensions: 2.55” H, 8.25” W, 4” D (behind the dash)

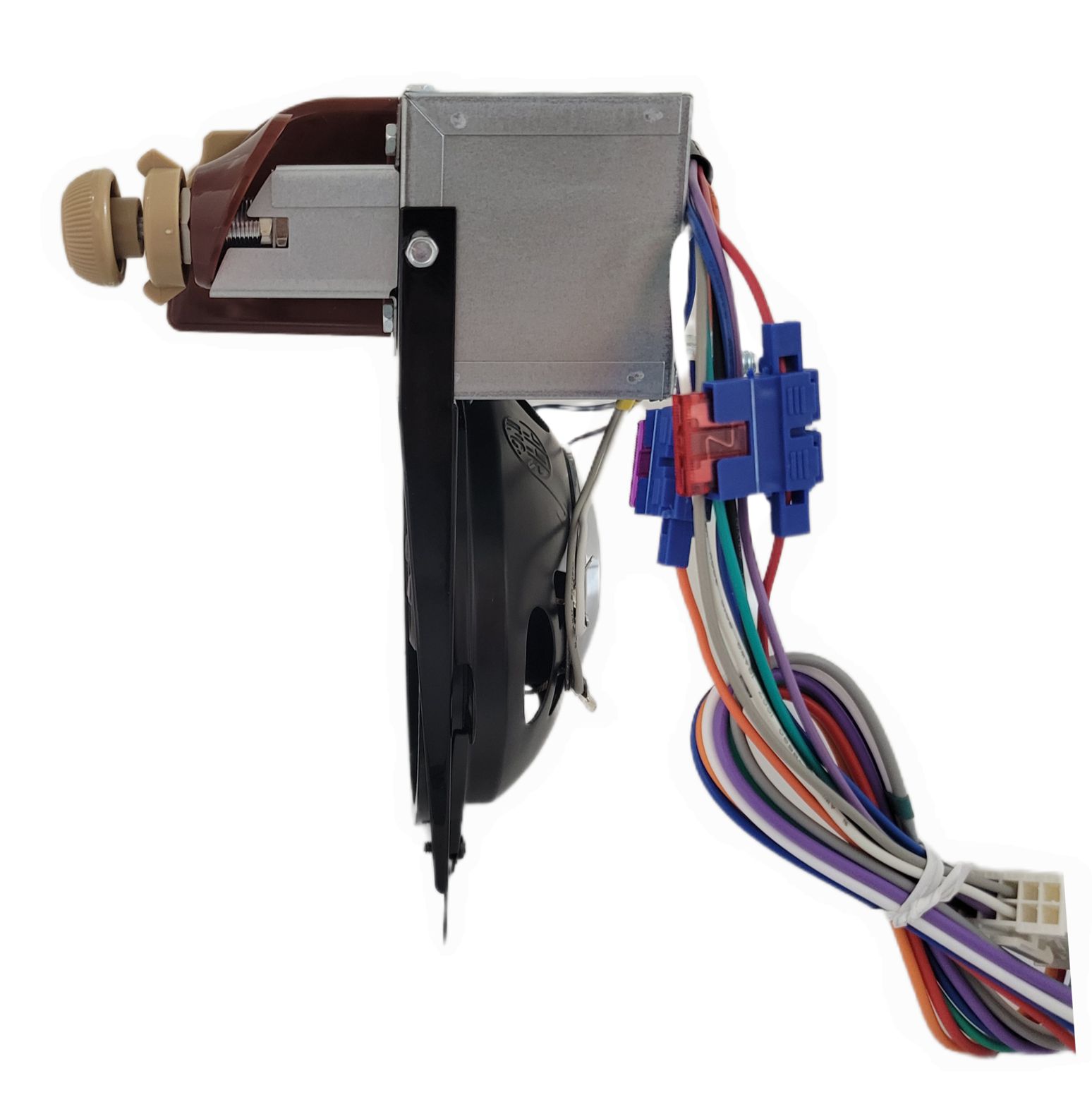

• The optional built-in speaker bracket sits 5 ½” below the radio case.
• Knobs, backrings, and escutions are included and match the original.
• AM/FM radio with programmable options for North American or European channel spacing.
• Digitally tuned AM/FM Stereo receiver provides stable, high-quality reception while keeping the original analog display.
• Sensitivity (FM S/N 30dB) typical 5 dBµ, (AM S/N 20dB) typical 29 dBµ.
• Bluetooth® 5.0 with built-in microphone for HFP
• HFP, HSP, A2DP, and AVRCP profiles are supported.
• Bluetooth mode offers a programmable audio equalizer while streaming music.
• 3.5mm auxiliary input jack for any compatible device such as an MP3 player or a CD player (radios do not work with original, unaltered 8-track players)
• Radio is compatible with XM radio receivers using the 3.5mm input jack. (XM is not included with the radio purchase)
• An additional input jack specifically for use with our foot control switch option is included.
• The optional dash speaker with a custom frame uses our dual voice coil 5×7 (part number SDC570), providing stereo sound from the original dash opening. You can view the SDC570 speaker on our speaker page
• Radio output: 180 Watts RMS (45W x 4 speaker channels at 4Ω, 14.4 V, 1 kHz)
• Do not use original, grounded speakers! Radio has a protective circuit that shuts down if a speaker wire is grounded or has faults.
• Speaker recommendations: 40+ watts RMS rating, 4 Ohms, SPL 88+
• Radio operates on 11.5-16 Volts DC, negative ground only. Voltage boosters are available for 6-volt negative ground vehicles. See link: vol

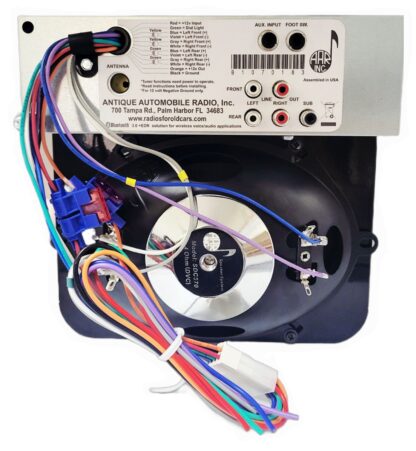

• Four low-level outputs plus one subwoofer RCA output are located on the back of the radio for use with an external amplifier.
• Controls use the same size and thread shafts as the original. Mounting nuts are included.
• Control operations include on/off, volume, tone, tuning, balance, and a hidden fader function, all from original-looking and feeling analog controls.
• Pushbuttons also work with Bluetooth functions such as play/pause, answer/hold and equalizer. See our Bluetooth page for more information
• Pushbuttons can save 5 FM preset stations and 5 AM preset stations.
• Memory retention (presets and other user settings) with power disconnected, no need for constant power!
• LED dial lights are warm white to match the original
• Standard (Motorola) antenna jack located on the back of the radio
• 9” mounting backstrap included
