1949-50 Ford Car & 1951-52 Ford Truck AM/FM/Bluetooth Radio

Description

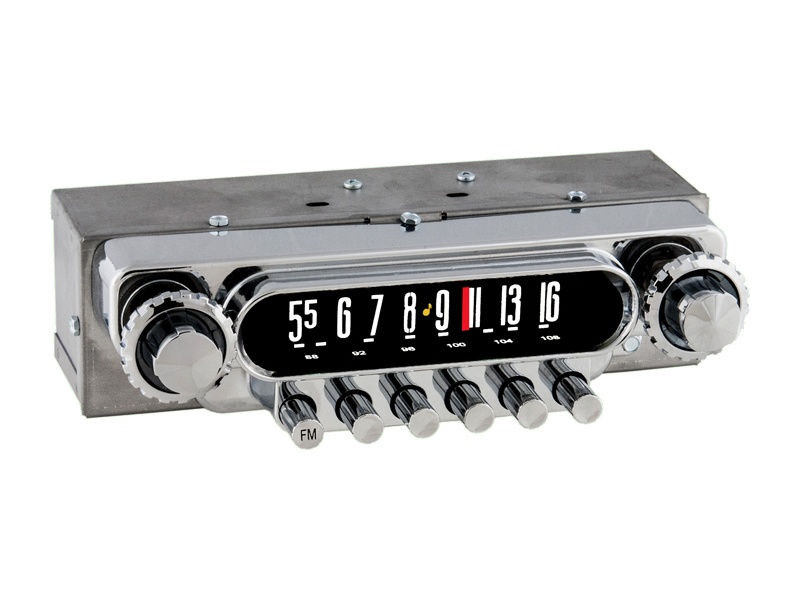

1949-50 Ford Passenger Car & 1951-52 Ford Truck and Wagon AM/FM/Bluetooth® Radio

Small size, big features! Our 1949-50 Ford Car and 1951-52 Ford Truck/Wagon radios are designed to look, fit, and feel just like the originals. Behind the dash, the radio case is only 4.125” deep, allowing room for electric wipers and air conditioning. The AM scale on the background is copied from the original. Hidden below is a small FM dial scale. To switch between AM and FM, press the first pushbutton labeled ‘FM’.

This radio does not have a digital display.

When the radio is powered on, the dial pointer, knobs, and push buttons all move and work like the original. Every radio comes equipped with Bluetooth® for wireless audio streaming and hands-free phone control. Other features include a 3.5mm auxiliary port to plug in any compatible device, such as an MP3 player or a CD player, as well as another input jack specifically designed to work with our foot control switch. Each radio comes with a 12 ½” 12-wire harness with male and female connections for easy connection/disconnection. This harness includes power, ground, a 12-volt output wire (for options like a power antenna or amplifier remote connection), four-speaker connections, and dial lights. The radio also has four channel RCA outputs for an external amplifier and a subwoofer RCA output. Please see the links below for more information.

Specifications:

• Radio case dimensions: 2.5” H, 8.75” W, 4.175” D (behind the dash)
• High-quality chrome-plated die-cast nose pieces and pushbuttons match the original.
• Chrome-plated die-cast knobs and backrings are included and match the original.
• AM/FM radio with programmable options for North American or European channel spacing.
• Digitally tuned AM/FM Stereo receiver provides stable, high-quality reception while keeping the original analog display.
• Sensitivity (FM S/N 30dB) typical 5 dBµ, (AM S/N 20dB) typical 29 dBµ.
• Bluetooth® 5.0 with built-in microphone for HFP
• HFP, HSP, A2DP, and AVRCP profiles are supported.
• Bluetooth mode offers a programmable audio equalizer while streaming music.
• 3.5mm auxiliary input jack for any compatible device such as an MP3 player or a CD player (radios do not work with original, unaltered 8-track players)
• Radio is compatible with XM radio receivers using the 3.5mm input jack. (XM is not included with the radio purchase)
• An additional input jack specifically for use with our foot control switch option is included.
• Radio output: 180 Watts RMS (45W x 4 speaker channels at 4Ω, 14.4 V, 1 kHz)
• Do not use original, grounded speakers! Radio has a protective circuit that shuts down if a speaker wire is grounded or has faults.
• Speaker recommendations: 40+ watts RMS rating, 4 Ohms, SPL 88+
• Four low-level outputs + 1 subwoofer RCA output located on the back of the radio for use with an external amplifier.
• Controls use the same size and thread shafts as the original. Mounting nuts are included.
• Control operations include on/off, volume, tone, tuning, balance, and a hidden fader function, all from original-looking and feeling analog controls.
• Pushbuttons can save 5 FM preset stations and 5 AM preset stations.
• Memory retention (presets and other user settings) with power disconnected, no need for constant power!
• LED dial lights are green to match the original
• Standard (Motorola) antenna jack located on the back of the radio
• 9” mounting backstrap included
